540 Big Block Chevy Drag Race Engine
Sportsman Drag Race

540 Big Block Chevy Drag Race Engine $15,550

540/865HP $15,550
Less Carb & Ignition

The Most Bang For The Buck ... Our Most Popular Big Block Combination For Bracket Racing. We Have Built Literally Thousands Of These And Have Developed A Combination That Produces Great Power With Excellent Reliability.

  • Horsepower
  • Torque
  • Bore & Stroke
  • Compression Ratio
  • 865 @ 6900 RPM
  • 710 @ 5800 RPM
  • 4.500 x 4.250
  • 13.5 to 1
  • Dart Big "M" 9.8" Low Deck Block w/4 Bolt Splayed Caps
  • SSRE/Scat 4340 4.250" Stroke Steel Crank (1)
  • Scat 4340 6.385" H-Beam Steel Rods
  • Clevite 77 "H" Series Main & Rod Bearings
  • SRP 13.5 Forged Aluminum Pistons
  • Total Seal Plasma Moly Ring Set
  • SSRE Custom Grind Steel Billet Roller Cam
  • Comp Cams Heavy Duty Solid Roller Lifters
  • Rollmaster Billet Timing Set w/IWIS Chain & Torrington Bearing
  • Dart "New Design" Pro 1 345 Aluminum Heads
  • Manley Nextek® 1.640" Roller Springs
  • Titanium Retainers & 10° Locks
  • ARP Head Stud Kit w/Parallel Ground Washers
  • Scorpion Race Series Aluminum Roller Rockers
  • FelPro HP Head Gaskets w/Pre-Flattened Steel Wire
  • Merlin X "New Design" Dominator Intake Manifold (2)
  • SSRE/Moroso Custom Stroker Oil Pan w/Windage Tray
  • Moroso Race Prepped Pump w/Tig Welded HD Pickup
  • GM Performance Chrome Front Cover w/Billet Pointer
  • SFI Approved Harmonic Balancer
  • Complete Assembly Internally Balanced
  • Individually Dyno Tested & Tuned
  • Actual Dyno Sheet Provided
  • Footnotes:
  • (1) Precision machined in USA to our custom specifications.
  • (2) 4150 Style Intake Available.
Shafiroff Racing Engine Upgrade Packages
Bells & Whistles Package $3160

Do You Want All The Bells & Whistles? Then This Is The Package For You! Includes The Listed Components Installed With Extra Savings!


●  Crank Trigger Ignition Upgrade $295
●  Jesel "Original 2 pc" Belt Drive $1145
●  Vacuum Pump Kit Includes: Moroso 3 Vane Vacuum Pump & Adjustable Relief Valve, Breather Tank, AN Fittings, Jones Mandrel & Bracket Kit w/Radius Tooth HTD Belt. $1495
●  SSRE Engraved Sheet Metal Valve Covers $375

Total Package Value = $3310 - Save $150!

Shafiroff Racing Engine Options
Fuel System Components
Why Buy A Carburetor From Us?

Yes, you can certainly purchase a stock carb from the big mail order companies but we've seen carbs out of the box down on power as much as 40HP and between 15-20HP is common. That's why we disassemble and blueprint EVERY carburetor before we ever bolt it on your engine. We then tune, adjust and jet your carb on your engine so you get every ounce of power that you paid for.

Even if you're considering one of our Engine Kits or simply looking for a replacement carb, the same blueprint work is done and we dyno test it on a comparable engine to yours before it ships!
 $Priceless

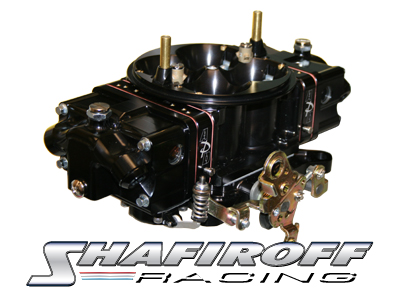

APD 1040 CFM 4150 Series Carb Package includes: 3 Circuit Billet Carb, Phenolic Spacer, Aluminum AN Fuel Fittings, Studs & Gaskets. Dyno Tuned, Jetted and Calibrated on your engine.ImageShafiroff Racing Available Options Close$995

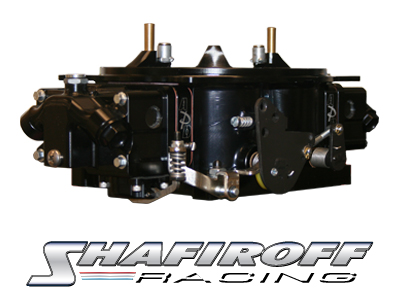

APD 1050 CFM 4500 Series Carb Package includes: 3 Circuit Billet Carb, Phenolic Spacer, Aluminum AN Fuel Fittings, Studs & Gaskets. Dyno Tuned, Jetted and Calibrated on your engine.ImageShafiroff Racing Available Options Close$1395
APD 1150 CFM 4500 Series Carb Package includes: 3 Circuit Billet Carb, Phenolic Spacer, Aluminum AN Fuel Fittings, Studs & Gaskets. Dyno Tuned, Jetted and Calibrated on your engine.ImageShafiroff Racing Available Options Close$1395

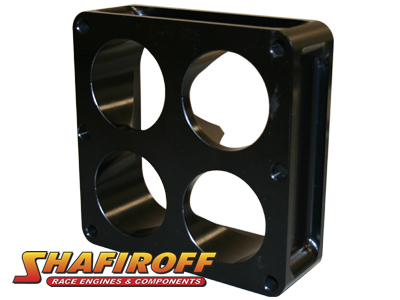

APD "Black Widow" 2" SpacerImageShafiroff Racing Available Options Close$175

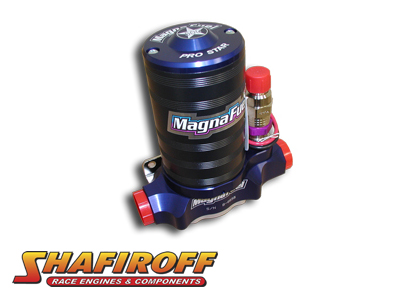

MagnaFuel ProStar 500 Billet Gerotor Electric Fuel PumpImageShafiroff Racing Available Options Close$430
Igniton Components
MSD Electronic Ignition Package includes MSD 85705 Pro Billet Locked Distributor w/Ford HEI-Style Cap, Bronze Gear, Custom MSD/Moroso 8.5mm Wire Set. Dyno Tested and Calibrated on your engine. $795
Crank Trigger Ignition Upgrade $295
MSD 7AL-2 Electronic Ignition Box (Direct Plug-in For Our MSD Distributors) $759
MSD 82613 HVC-2 Coil $265
Blocks
Dart Inner Valley Stud Kit (Improved Head Gasket Sealing) $95
Dart Steel Billet Main Cap Upgrade $450
Brodix Aluminum Block w/Steel Billet Caps, Special Head Stud Kit & Additional Machining (Slightly Less Peak HP) $4500
HIP® Process (Hot Isostatic Pressing) For Increased Durability With Aluminum Blocks $675
Crankshafts
Manley 4340 Non-Twist Forged & Nitrided Crank $150
Connecting Rods
ARP 2000 Rod Bolts $125
Manley H-Beam 4340 Steel Rods w/ARP 2000 Bolts $300
Molnar Severe Duty 4340 H-Beam Rods w/ARP 2000 Asymmetrical Bolts $400
Pistons - Pins - Rings - Bearings
JE/Wiseco Pro Series 14 to 1 Pistons with 1/16 Rings $200
Total Seal TNT "Hellfire" Rings $175
Tool Steel "M2" Rings for Extreme Nitrous $395
Tool Steel "Heavy Wall" Wrist Pins $250
Calico Coated Bearing Package $175
Lifters
HIPPO Severe Duty Roller Lifters w/Hi-Pressure Pin Oiling (Extended Lifter Life) $295
Morel "Black Mamba" Needleless Roller Lifters $695
Isky Red Zone Solid Roller Lifters w/EZX "Needle Free" Bearing Option $845
Valvetrain
1.645" Pacaloy® Triple Valve Spring Upgrade $175
T&D Shaft Rocker System Available In 1.70, 1.75 or 1.80 Ratio (Split Ratio Sets No Extra Charge) $1795
Needle Bearing Tip Option for T&D Shaft Rockers $295
Timing

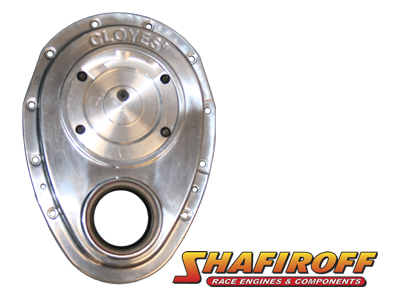

Cloyes 2 Piece Aluminum Timing CoverImageShafiroff Racing Available Options Close$195
Jesel "Original 2 pc" Belt Drive $1145
Intake Manifolds
Edelbrock Super Victor Intake Manifold For 4150 Style Carburetors $N/C
Nitrous Systems
SpeedTech Diffuser Plate Nitrous System - Installed $795
SpeedTech Liquid Force "Fogger Style" Nitrous System - Plumbed & Installed $1750
Oil Pumps - Oil Pans - Vacuum Pump

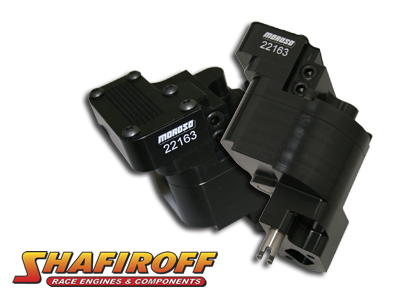

Moroso HD Billet Aluminum Oil PumpImageShafiroff Racing Available Options Close$395
Moroso Kickout Style Pro Pan w/Solid Louvered Tray & Main Cap Partitions For Added Power & Oil Control. (Includes New Wing Design Oil Pump) $395
Moroso Aluminum Pro Eliminator Pan $495

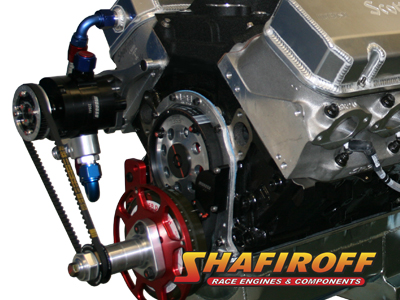

Vacuum Pump Kit Includes: Moroso 3 Vane Vacuum Pump & Adjustable Relief Valve, Breather Tank, AN Fittings, Jones Mandrel & Bracket Kit w/Radius Tooth HTD Belt. ImageShafiroff Racing Available Options Close$1495
Additional Parts - Labor - Accessories
Cometic MLS (Multi Layered Steel) Head Gaskets $125
ATI SFI Approved Super Damper Balancer (Includes Hone To Fit Labor) $245
SFI Heavy Duty Flexplate & ARP Bolt Package $150

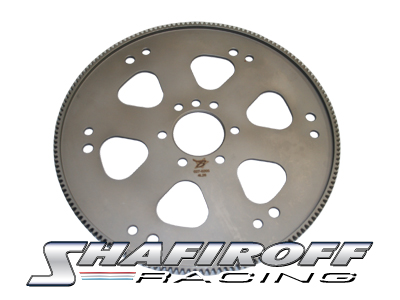

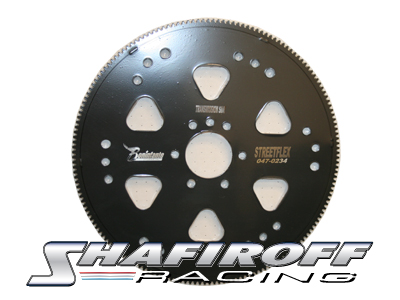

Boninfante Severe Duty SFI Flexplate & ARP Bolt PackageImageShafiroff Racing Available Options Close$229
Boninfante SFI Billet Flexplate & ARP Bolt PackageImageShafiroff Racing Available Options Close$395

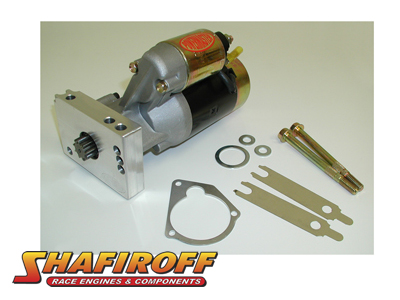

PowerMaster Hi-Torque Mini StarterImageShafiroff Racing Available Options Close$229

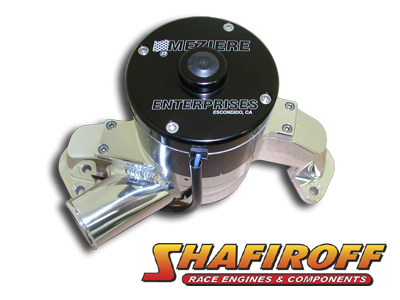

Meziere 55GPH Electric Water PumpImageShafiroff Racing Available Options Close$575

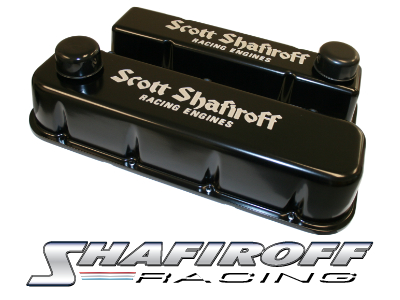

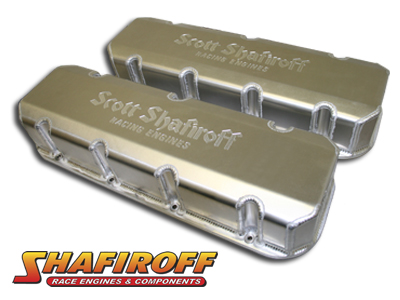

SSRE Engraved Sheet Metal Valve CoversImageShafiroff Racing Available Options Close$375
