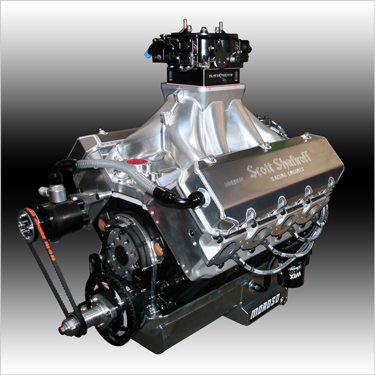

632 Big Block Chevy Pro Series 9° Drag Race Engine
Drag Race Pro Series

632 Big Block Chevy Pro Series 9° Drag Race Engine $38,700

632/1295HP $38,700
Includes Carb & Ignition

Ultra Trick APD 1450 Billet Enforcer Carb & Black Widow Spacer STANDARD

Top Of The Food Chain, That's What This New 9° DN9 "Spread Port" Record Breaker Is All About. If You're Looking For 1300 NA Reliable Horsepower With A Single 4BBL Look No Further. Perfect For Super Class Racing Or Just Fast, Consistant Bracket Racing There Is None Better! When You're Looking For That Big, Big Top End Charge For Your Super Class Race Car Get Yourself One Of These And Join Some Pretty Elite Company At The "Fast" End Of The Race Track!

  • Horsepower
  • Torque
  • Bore & Stroke
  • Compression Ratio
  • 1295 @ 7500 RPM
  • 925 @ 6200 RPM
  • 4.600 x 4.750
  • 15.5 to 1

  • Dart Big "M" Tall Deck Block w/Splayed Caps
  • Callies 4.750" Stroke Magnum Plus® Crank
  • Oliver Steel Billet 6.700" Rods
  • Clevite 77 "H" Series Main & Rod Bearings
  • SSRE/Diamond 15.5-1 Custom Gas Ported Pistons w/UltraLite® Rings
  • SSRE 55mm Large Core 7/4 Swap Billet Roller Cam
  • Isky Red Zone .904" Solid Roller Lifters w/Hi-Pressure Pin Oiling
  • Jesel Belt Drive
  • SSRE/Brodix DN9 9° Fully CNC Ported Heads
  • Titanium 2.520" Intake & 1.800" Exhaust Valves
  • NexTek 1.670" Triple Springs w/Titanium Retainers & 10° Locks
  • ARP Head Stud Kit w/Parallel Ground Washers
  • Jesel Shaft Rockers
  • 7/16" Super Duty Pushrods
  • Cometic MLS Head Gaskets
  • Dart Inner Valley Stud Kit
  • New! APD "Heartbreaker" (3) Piece Billet Single Dominator Intake
  • SSRE/Moroso Pro Eliminator Oil Pan
  • Moroso Billet Aluminum Oil Pump
  • ATI Super Damper
  • APD 1450 Billet Enforcer 4500 Carb & Black Widow Spacer
  • Crank Trigger Ignition Package w/Moroso Shielded Wires
  • Custom Engraved Sheet Metal Valve Covers
  • Complete Assembly Internally Balanced
  • Individually Dyno Tested & Tuned
  • Actual Dyno Sheet Provided
Fuel System Components
Why Buy A Carburetor From Us?

Yes, you can certainly purchase a stock carb from the big mail order companies but we've seen carbs out of the box down on power as much as 40HP and between 15-20HP is common. That's why we disassemble and blueprint EVERY carburetor before we ever bolt it on your engine. We then tune, adjust and jet your carb on your engine so you get every ounce of power that you paid for.

Even if you're considering one of our Engine Kits or simply looking for a replacement carb, the same blueprint work is done and we dyno test it on a comparable engine to yours before it ships!
 $Priceless
APD 1450 CFM 4500 Series Carb Package includes: 3 Circuit Carb, APD Black Widow Spacer, Aluminum AN Fuel Fittings, Studs & Gaskets. Dyno Tuned, Jetted and Calibrated on your engine.Image Close$Included
MagnaFuel ProStar 500 Billet Gerotor Electric Fuel PumpImage Close$430
Igniton Components
MSD Electronic Ignition Package includes MSD Pro Billet Locked Distributor w/Ford HEI-Style Cap, Bronze Gear, Custom MSD 8.5mm Wire Set. Dyno Tested and Calibrated on your engine. $Included
MSD 7AL-2 Electronic Ignition Box (Direct Plug-in For Our MSD Distributors) $759
MSD 82613 HVC-2 Coil $265
Blocks
Dart Steel Billet Main Cap Upgrade $450
Brodix Aluminum Block w/Steel Billet Caps, Special Head Stud Kit & Additional Machining (Slightly Less Peak HP) $4500
HIP® Process (Hot Isostatic Pressing) For Increased Durability With Aluminum Blocks $675
Connecting Rods
Callies Ultra I-Beam 4330M Timken Steel Rods $295
Pistons - Pins - Rings - Bearings
Total Seal TNT "Hellfire" Rings $175
Tool Steel "M2" Rings for Heavy Nitrous $395
Tool Steel "Heavy Wall" Wrist Pins $250
Calico Coated Bearing Package $150
Lifters
Isky Red Zone .904 Solid Roller Lifters w/EZX "Needle Free" Bearing Option $295
Morel "Black Mamba" Needleless Roller Lifters $295
Valvetrain
Needle Bearing Tip Option for T&D Shaft Rockers $295
Nitrous Systems
SpeedTech Diffuser Plate Nitrous System - Installed $795
SpeedTech Liquid Force "Fogger Style" Nitrous System - Plumbed & Installed $1750
Oil Pumps - Oil Pans - Vacuum Pump
Moroso Aluminum Pro Eliminator Pan $295
Vacuum Pump Kit Includes: Moroso 3 Vane Vacuum Pump & Adjustable Relief Valve, Breather Tank, AN Fittings, Jones Mandrel & Bracket Kit w/Radius Tooth HTD Belt. Image Close$1395
Moroso Four Stage Dry Sump Oil System $3500
Additional Parts - Labor - Accessories
SFI Heavy Duty Flexplate & ARP Bolt Package $150
Boninfante Severe Duty SFI Flexplate & ARP Bolt PackageImage Close$229
Boninfante SFI Billet Flexplate & ARP Bolt PackageImage Close$395
PowerMaster Hi-Torque Mini StarterImage Close$229
Meziere 55GPH Electric Water PumpImage Close$535
Show Quality Polished Chrome Plated Finish For Sheet Metal Valve Covers (Additional Charge)Image Close$Call
